Proliferation of OASIS Common Alerting Protocol (CAP) Standard

Keywords: CAP, Common Alerting Protocol, OASIS, Emergency Management, Standards, EDXL, Emergency Data Exchange Language, Interoperability, C4, Disaster Management, Warning, Alert & Notification

Abstract

OASIS is an international standards development organization (SDO) committed to the development of open, international, interoperable markup language standards. The OASIS Emergency Management Technical Committee (EM-TC) has developed the Common Alerting Protocol (CAP) standard. CAP is a simple—but general—Extensible Markup Language (XML) format for exchanging all-hazard emergency alerts and public warnings over various kinds of networks. CAP allows a consistent warning message to be disseminated simultaneously over many different warning systems, increasing warning effectiveness while simplifying the warning process. CAP also facilitates the detection of emerging patterns in local warnings that might indicate an undetected hazard or hostile act. CAP provides a template for effective warning messages based on best practices identified through academic research and real-world experience.

Use of the CAP standard is becoming more prevalent in the United States Emergency Management (EM) community. Operational systems are adhering to the CAP standard. As more and more operational systems adopt the CAP standard, significant progress is being made toward seamless interoperability between EM systems.

The National Oceanic & Atmospheric Administration (NOAA) is currently developing and testing the HazCollect system, which is based on the CAP standard and will automate the distribution of messages from Emergency Managers in the field to National Weather Service (NWS) dissemination systems, including the NOAA Weather Radio (NWR), NOAA Weather Wire Service (NWWS), and the NWS Telecommunications Gateway (TG). HazCollect is targeted to be released in 2006.

As practitioners press on toward the NIMS vision of interoperability and compatibility, there are significant opportunities for the application of CAP. The OASIS EM-TC is developing the Emergency Data Exchange Language (EDXL), an integrating framework for a wide range of emergency data exchange standards to support operations, logistics, planning, and finance. The EM-TC is involved in the joint effort of developing these standards based on requirements gathered from the Department of Homeland Security (DHS) Disaster Management Program within a well-defined process. This collaborative process involves many agencies and practitioners. The first instance of EDXL is set to be a common routing-assertion element that can be used to envelop XML and other kinds of documents, including CAP messages.

The US EM community is rapidly embracing the CAP standard to resolve inter-system interoperability issues, but much work is needed to bridge the gap between the US EM community and the international EM community. The EM-TC is encouraging the use of international standards, such as CAP, to facilitate system interoperability across jurisdictional boundaries. The EM-TC consortium is motivated in this effort to mitigate such devastation and loss of life, as occurred in the 2004 tsunami.

Table of Contents

1. Common Alerting Protocol
1.1. Background
1.2. Overview
1.3. Structure of the CAP Alert Message
2. CAP in Action
2.1. United States Geological Survey
2.2. National Oceanic & Atmospheric Administration
2.3. Department of Justice
2.4. Sensor Networks
2.5. Chemical Stockpile Emergency Preparedness Program
3. The Road Ahead
3.1. Emergency Interoperability Consortium
3.2. Disaster Management eGovernment Initiative
3.3. International Emergency Management Interoperability
3.4. The EDXL Family of Emergency Management Standards
3.4.1. EDXL-DE
3.4.2. Structure of the EDXL-DE
3.4.3. Example EDXL Code
3.5. Next Steps in EDXL Development
Acknowledgements
Bibliography
Biography

1. Common Alerting Protocol

The challenge of public warning is met through collaborative actions so that standards-based, all-media, all-hazards public warning is available to all societies, worldwide.

The Common Alerting Protocol (CAP) standard:


Offers one format for all hazard types; ready for sending across all kinds of communications devices

Opens the door to new alerting systems and technical innovation

1.1. Background

In November 2000, the National Science and Technology Council’s (NSTC) report on Effective Disaster Warnings recommended that “a standard method should be developed to collect and relay instantaneously and automatically all types of hazard warnings and reports locally, regionally and nationally for input into a wide variety of dissemination systems.”

An international working group of emergency managers and information technology and telecommunications experts convened in 2001 and adopted the specific recommendations of the NSTC report as a point of departure for the design of a Common Alerting Protocol. Their draft went through several revisions and was tested in demonstrations and field trials in Virginia, Washington, D.C., Nevada, and California during 2002 and 2003.

In 2002, the CAP initiative was endorsed by the national non-profit Partnership for Public Warning, which sponsored its contribution in 2003 to the OASIS standards process. In 2004, CAP version 1.0 was adopted as an OASIS Standard. CAP version 1.1 was adopted as an OASIS international standard October 28, 2005.

1.2. Overview

OASIS is an international SDO committed to the development of open nonproprietary interoperable XML standards. The OASIS EM-TC has developed the CAP standard. CAP is a simple—but general—format for exchanging all-hazard emergency alerts and public warnings over various kinds of networks. CAP allows a consistent warning message to be disseminated simultaneously over many different warning systems, increasing warning effectiveness while simplifying the warning process. CAP also facilitates the detection of emerging patterns in local warnings that might indicate an undetected hazard or hostile act. CAP provides a template for effective warning messages based on best practices identified through academic research and real-world experience [CAP1.1].

Key benefits of CAP include reduction of costs and operational complexity by eliminating the need for multiple custom software interfaces to the many warning sources and dissemination systems involved in all-hazards warning. CAP is not dependent on a specific transport protocol making it transport agnostic. It can be transported through simple protocols such as Hypertext Transfer Protocol (HTTP) and Jabber®, as well as more structured software transport, such as Simple Object Access Protocol (SOAP) and Resource Description Framework (RDF) Site Summary (RSS). The CAP message format can be converted to and from the “native” formats of all kinds of sensor and alerting technologies, forming a basis for a technology-independent national and international “warning Internet.”

CAP provides an open, non-proprietary digital message format standard for all types of alerts and notifications independent of any particular application or telecommunications method. CAP is compatible with emerging techniques, such as Web services, as well as existing formats including the Specific Area Message Encoding (SAME) used for the United States’ NOAA Weather Radio, and the Emergency Alert System (EAS).

Enhanced Capabilities Facilitated By CAP:


Flexible, geographic targeting using latitude/longitude shapes and other geospatial representations in three dimensions

Multi-lingual and multi-audience messaging

Phased and delayed effective times and expirations

Enhanced message update and cancellation features

Template support for framing complete and effective warning messages

Compatible with digital encryption and signature capability

Facility for digital images and audio

1.3. Structure of the CAP Alert Message

Each CAP alert message consists of an alert element, which may contain one or more info elements. Each info element may contain one or more resource elements and one or more area elements. CAP messages with a msgType element value of “Alert” should include at least one info element as shown in Figure 1

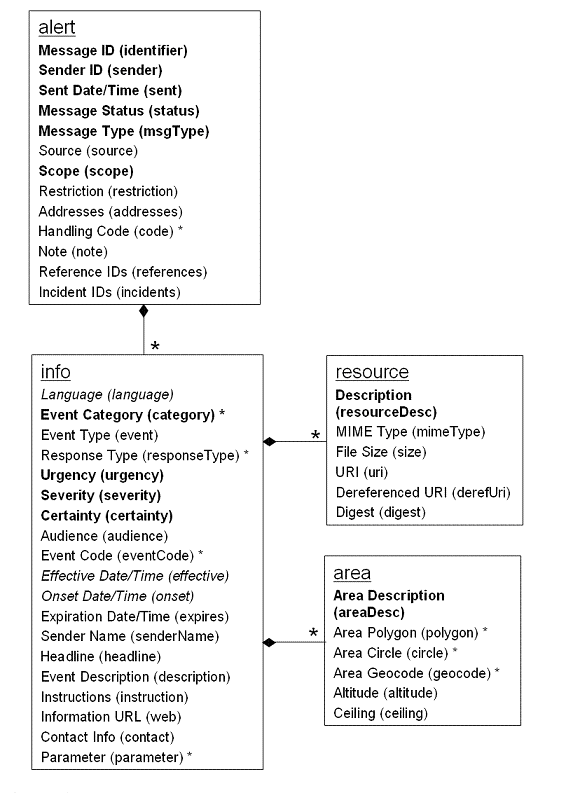

Figure 1. CAP Document Object Model

Elements in boldface are mandatory; elements in italics have default values that will be assumed if the element is not present; asterisks (*) indicate that multiple instances are permitted.

A sample CAP 1.1 Amber alert message is provided in Example 1.

Example 1. Amber Alert CAP Message

<?xml version = "1.0" encoding = "UTF-8"?> <alert xmlns = "urn:oasis:names:tc:emergency:cap:1.1"> <identifier>KAR0-0306112239-SW</identifier> <sender>KARO@CLETS.DOJ.CA.GOV</sender> <sent>2003-06-11T22:39:00-07:00</sent> <status>Actual</status> <msgType>Alert</msgType> <source>SW</source> <scope>Public</scope> <info> <category>Rescue</category> <event>Child Abduction</event> <urgency>Immediate</urgency> <severity>Severe</severity> <certainty>Likely</certainty> <eventCode> <valueName>SAME</valueName> <value>CAE</value> </eventCode> <senderName>LOS ANGELES POLICE DEPT - LAPD</senderName> <headline>AMBER ALERT</headline> <description>DATE/TIME: 06/11/03, 1915 HRS. VICTIM(S):             KHAYRI DOE JR. M/B BLK/BRO 3'0", 40 LBS. LIGHT COMPLEXION. DOB 06/24/01. WEARING RED SHORTS,             WHITE T-SHIRT, W/BLUE COLLAR. LOCATION: 5721             DOE ST., LOS ANGELES, CA. SUSPECT(S): KHAYRI             DOE SR. DOB 04/18/71 M/B, BLK HAIR, BRO EYE.             VEHICLE: 81' BUICK 2-DR, BLUE (4XXX000). </description> <contact>DET. SMITH, 77TH DIV, LOS ANGELES POLICE DEPT-LAPD            AT 213 485-2389 </contact> <area> <areaDesc>Los Angeles County</areaDesc> <geocode> <valueName>SAME</valueName> <value>006037</value> </geocode> </area> </info> </alert

2. CAP in Action

Use of the CAP standard is gaining ground in the US EM community as more operational systems adopt the CAP standard. Significant progress is being made toward seamless interoperability between EM systems.

2.1. United States Geological Survey

The United States Geological Survey (USGS) is implementing CAP to warn about earthquakes, volcanoes, landslides, wildlife diseases, and invasive species, as well as to work with other government agencies on hazards, such as tsunamis, wildfires, and floods.

As shown in Table 1, tens of thousands of earthquakes occur in the world each year. The USGS Earthquake Hazards Program and Office of Communications offers a new service that provides CAP messages for reviewed reports of Earthquake events. CAP earthquake alerts are posted to http://earthquake.usgs.gov/recenteqsww/catalogs/cap/.

Magnitude

2000

2001

2002

2003

2004

2005

8.0 to 9.9

1

1

0

1

2

1

7.0 to 7.9

14

15

13

14

14

9

6.0 to 6.9

158

126

130

140

141

128

5.0 to 5.9

1345

1243

1218

1203

1515

1525

4.0 to 4.9

8045

8084

8584

8462

10888

12081

3.0 to 3.9

4784

6151

7005

7624

7932

7150

2.0 to 2.9

3758

4162

6419

7727

6316

3891

1.0 to 1.9

1026

944

1137

2506

1344

22

0.1 to 0.9

5

1

10

134

103

0

No Magnitude

3120

2938

2937

3608

2939

749















Total

22256

23534

27454

31419

31194

25556















Estimated Deaths

231

21357

1685

33819

284010

82322

Table 1.  Number of Earthquakes Worldwide for 2000 - 2005

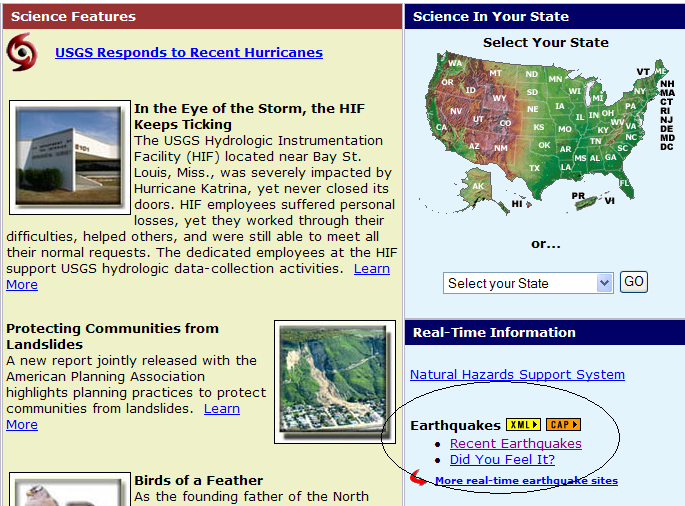

As illustrated in Figure 2, CAP alerts can also be accessed from the USGS home page (www.usgs.gov [http://www.usgs.gov/]).

Figure 2. USGS Website

The USGS Website features real-time earthquake CAP messages.

2.2. National Oceanic & Atmospheric Administration

In FY 2004, NOAA began developing a capability to reduce the time it takes for an emergency manager to input a hazard warning into NOAA Weather Radio All Hazards and reduce the possibility of transcription errors. This system, known as HazCollect, will reduce the amount of time it takes to input a message into the system—from seven minutes to less than two minutes. This capability, will allow emergency managers direct access to the Emergency Alert System via NOAA Weather Radio All Hazards and is expected to be fully operational in FY 2006. HazCollect will use the CAP format for emergency messages. The NOAA message flow is captured in Figure 3.

Figure 3. HazCollect Message Flow

HazCollect will plug into the NOAA message flow in late 2005.

2.3. Department of Justice

The OASIS CAP is in use in the law enforcement community. The standards-based Capital Wireless Integrated Network (CapWIN) is a partnership between the States of Maryland and Virginia and the District of Columbia to develop an interoperable first responder data communication and information sharing network.

CapWIN's application suite enables:


Incident management and coordination across agencies, regions, and public safety and transportation disciplines

Secure one-to-one and group public and private discussions

A robust and searchable directory of individual first responders—a “411 Directory” for public safety and transportation agencies

Access to operational data/resources, including multiple State and Federal law enforcement criminal databases

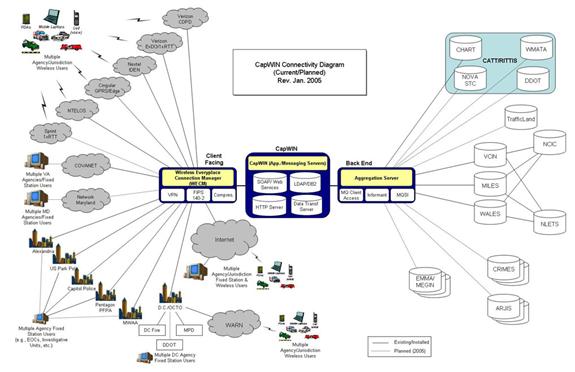

Figure 4. CapWIN Connectivity Diagram

CapWIN connects local, State, and Federal law enforcement organizations in the National Capital Region.

CapWIN was used at the request of the US Marine Corps to coordinate the activities of multiple first responder agencies supporting the annual Marine Corps Marathon in the District of Columbia and Arlington County, Virginia. Eighteen users from six agencies actively participated during the day-long incident.

Participating agencies included:


United States Marine Corps (Mobile Command)

Arlington County, Virginia, Police Department (Mobile Command)

District of Columbia Department of Transportation

Virginia Department of Transportation

United States Park Police

Pentagon Force Protection Agency (PFPA) Field and Operations Command Center Staff

CapWIN (Operations and Help Desk Support)

The design and development of the CapWIN system is being performed using open standards, wherever possible. As a system designed to enable data interoperability across multiple technical platforms, jurisdictions and public safety disciplines, CapWIN personnel are participating in the implementation and development of new data exchange standards at the Federal, State, and local levels. CapWIN connectivity is detailed in Figure 4.

CapWIN is planning to add a dedicated transformation server to handle XML transactions that utilize a multitude of XML Data Dictionaries and Data Models including CAP and EDXL.

2.4. Sensor Networks

CAP’s flexibility has fostered its extension to areas not intended for use. For example, sensor networking research and development at Sandia National Laboratory is utilizing CAP in its Chemical, Biological, Radiological, Nuclear, and high-yield Explosive (CBRNE) alerting framework.

2.5. Chemical Stockpile Emergency Preparedness Program

In 1985, the US Congress mandated that the nation’s stockpile of unitary lethal chemical agents and munitions be destroyed During the continued storage and ultimate disposal of these stockpiles, there is a remote possibility of an accidental release of agent that could threaten people and property on the Army installations and in the surrounding communities. The Chemical Stockpile Emergency Preparedness Program (CSEPP) has been tasked with mitigating the effects of such an event.

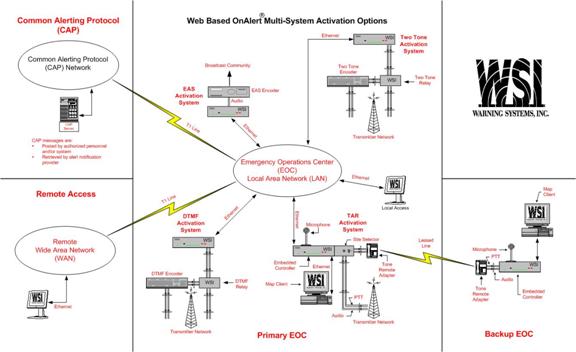

Figure 5. CSEPP Community Interoperability

Web-based on-alert multi-system activation options

The CSEPP community is fostering interoperability between EM hardware and software, as illustrated in Figure 5. A CAP message containing the chemical plume footprint, dosage contours, Protective Action Zones (PAZs), and Protective Action Recommendations (PARS) is generated by IEM’s D2-Puff™ software. This message is used by WSI’s activation system to set off Tone Alert Radios (TARs) and sirens and to activate EASs in the zones and geospatial area of the disaster. This system integration is displayed in Figure 6.

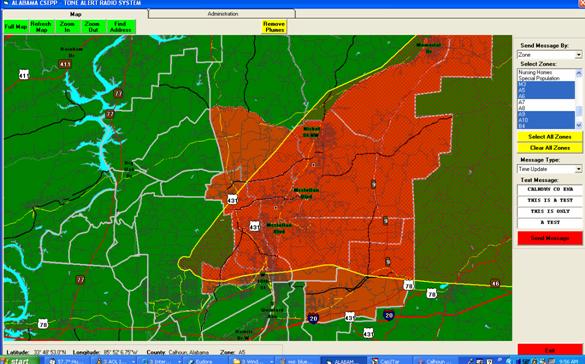

Figure 6. EM Software and Hardware Int

CAP makes integration of software and hardware systems seamless and cost-effective.

3. The Road Ahead

CAP is just a first step in moving national and international EM Command, Control, Communication, and Computer (C4) systems toward interoperability, but the EM community still has a long way to go.

3.1. Emergency Interoperability Consortium

The Emergency Interoperability Consortium (EIC) is made up of organizations that share the same goals for interoperable emergency communications. The Executive Committee leads the consortium, which participates in educational and outreach activities to the public and Federal communities on incident and emergency management issues. Many EIC members participate in the OASIS Emergency Management Technical Committee [http://www.oasis-open.org/committees/workgroup.php?wg_abbrev=emergency].

The Consortium's primary objectives are to:


Create a national approach for data interoperability through an industry-government consortium

Promote the development of Web services/XML data interoperability standards necessary to support the timely and accurate exchange of incident information throughout the EM community

Ensure every American has appropriate access to whatever information they require—when and how they need it

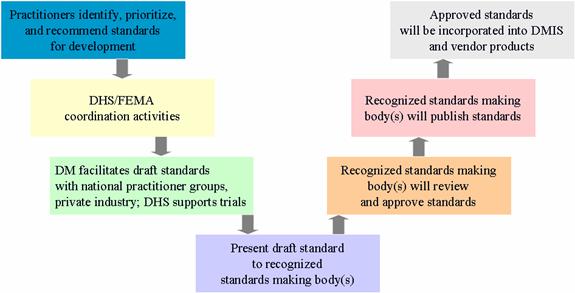

The standards development process employed is illustrated in Figure 7.

Figure 7. Collaborative Standards Development Process

The collaborative standards development process begins with requirements from the EM practitioner and ends with approved standards incorporated to the tools utilized by those practitioners.

3.2. Disaster Management eGovernment Initiative

The Disaster Management e-Government Initiative is one of 24 initiatives established by the President’s Management Council. It is an integrated team of partner agencies and organizations that perform disaster management activities will accomplish program delivery. The Disaster Management e-Government Initiative currently focuses on providing information and services relating to the four pillars of all-hazards disaster management: preparedness, response, recovery, and mitigation. Later phases will incorporate delivery of integrated, cross-agency processes and services to citizens, governments, and non-governmental organizations with emphasis on first responder needs.

The Disaster Management e-Government Initiative supports a multitude of Federal agency missions, including the Federal Emergency Management Agency’s (FEMA) mission to reduce the loss of life and property and protect American institutions from all hazards. The partnerships established support the Federal mission to provide the nation with a comprehensive, risk-based emergency management program of mitigation, preparedness, response, and recovery.

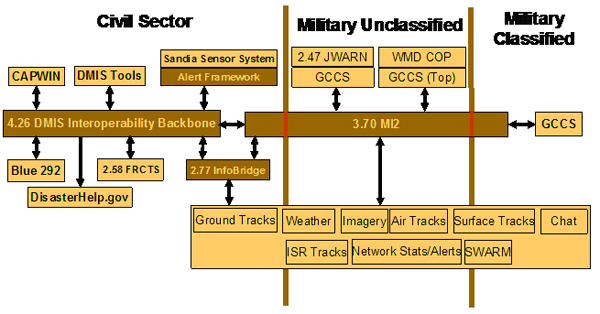

As detailed in Figure 8, Disaster Management Interoperability Services (DMIS) provide an interoperability backbone for EM information exchange. DMIS provides CAP and EDXL Distribution Element (DE) interoperability services.

Figure 8. Disaster Management Interoperability Services

DMIS provides the backbone for interoperation between civil and military systems.

3.3. International Emergency Management Interoperability

Much needs to be done in bridging the gap with the international EM community. The EM-TC is encouraging the use of international standards, such as CAP, to facilitate system interoperability across jurisdictional boundaries. The EM-TC consortium is motivated in this effort to mitigate such devastation and loss of life, as occurred in the 2004 tsunami.

That poster shown in Figure 9 is being presented simultaneously with XML 2005 at the World Summit on the Information Society (WSIS) to promote CAP use in the international space.

Figure 9. Public Warning at World Summit on the Information Society (WSIS)

International collaborative efforts are addressing all-hazard/all-media aspects of alert and notification through CAP.

3.4. The EDXL Family of Emergency Management Standards

As practitioners press on toward the NIMS vision of interoperability and compatibility, there are significant opportunities for the application of CAP. The OASIS EM-TC is developing the EDXL, an integrating framework for a wide range of emergency data exchange standards to support operations, logistics, planning, and finance. The EM-TC is involved in the joint effort of developing these standards based on requirements gathered from the DHS Disaster Management Program within a well-defined process. This collaborative process involves many agencies and practitioners. The first instance of EDXL is set to be a common routing-assertion element that can be used to envelop other kinds of documents, including CAP messages.

3.4.1. EDXL-DE

The Disaster Management Initiative has formed a partnership with industry members of the EIC to cooperate in the development of emergency standards. EIC members participated in the development of the EDXL-DE requirements.

EDXL is a standard XML-based message distribution framework for data sharing among emergency information systems. This format may be used over any data transmission system, including but not limited to the SOAP HTTP binding.

The primary purpose of the DE is to facilitate the routing of any emergency message to recipients. The DE payload can be any type of message or document including XML, Word, Shape Files, Excel, etc. The DE may be thought of as a “container.” It provides the information to route “payload” message sets, such as Alerts or Resource Messages, by including key routing information such as distribution type, geography, incident, and sender/recipient IDs.

The goal of the EDXL project is to facilitate emergency information sharing and data exchange across the local, State, tribal, national, international, and non-governmental organizations of different professions that provide emergency response and management services. EDXL accomplishes this goal by focusing on the standardization of specific messaging interfaces to facilitate emergency communication and coordination particularly when more than one profession is involved.

The draft DE specification was first trialed by a number of EIC members in October 2004. In November 2004, EIC formally submitted the draft to the OASIS Emergency Management Technical Committee for standardization. EDXL-DE 1.0 is expected to be adopted as an international standard by the end of 2005. [EDXL-DE1.0]

3.4.2. Structure of the EDXL-DE

The EDXL-DE comprises an EDXLDistribution element, an optional set of targetArea elements describing geospatial or political target area for message delivery, and a set of contentObject elements each containing specific information regarding a particular item of content. The included content may be any XML or other content type or a Uniform Resource Identifier (URI) to access the content. The EDXLDistribution element may be used without a contentObject element to form the body of a routing query to, or response from, a directory service. The EDXL-DE object model is provided in Figure 10.

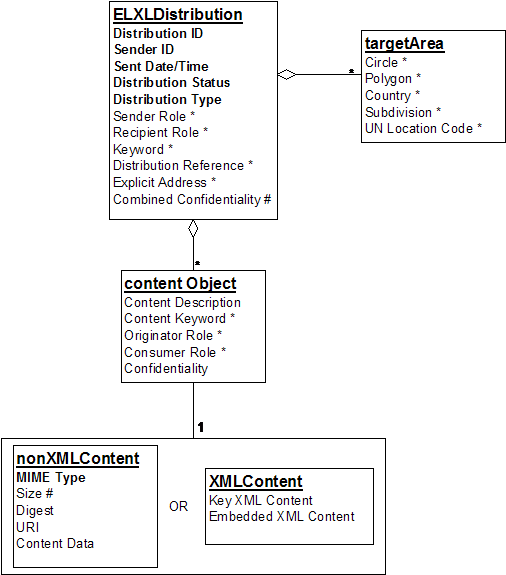

Figure 10. EDXL Distribution Element

Elements in boldface are mandatory; elements in italics have default values that will be assumed if the element is not present; asterisks (*) indicate that multiple instances are permitted.

3.4.3. Example EDXL Code

A sample EDXL-DE message with a CAP payload is shown in Example 2.

Example 2. EDXL-DE Message With CAP Payload

<EDXLDistribution xmlns="urn:oasis:names:tc:emergency:EDXL:DE:1.0"> <distributionID>ieam_e3_2</distributionID> <senderID>XML2005</senderID> <dateTimeSent>2005-11-15T16:53:00-05:00</dateTimeSent> <distributionStatus>Exercise</distributionStatus> <distributionType>Update</distributionType> <keyword> <valueListURN>http://www.niem.gov/EventTypeList</valueListURN> <value>Explosion</value> </keyword> <targetArea> <polygon>33.4745,-112.1174 33.4745,-112.0238 33.4238,-112.0238 33.4238,-112.1174 33.4745,-112.1174 </polygon> </targetArea> <contentObject> <contentDescription>CAP message from DOT advising best alternate Routes </contentDescription> <xmlContent> <embeddedXMLContent> <alert xmlns = "urn:oasis:names:tc:emergency:cap:1.1"> <identifier>Vendor generated</identifier> <sender>AZ DOT</sender> <sent>2005-11-15T16:58:00-05:00</sent>         <status>Exercise</status> <msgType>Update</msgType> <scope>Public</scope> <info> <category>Transport</category> <event>Traffic Routes</event> <urgency>Immediate</urgency> <severity>Moderate</severity> <certainty>Likely</certainty> <description>Traffic adjustments ensure clear routes to St. Josephs Hospital and Phoenix Childrens Hospital on Thomas Rd. </description> <area> <areaDesc>Best Routes</areaDesc> <polygon>38.91655012246089,-77.02016267943407 38.91655012246089,-77.0117098391165 38.907662564641285,-77.0117098391165 38.907662564641285,-77.02016267943407 38.91655012246089,-77.02016267943407 </polygon> </area> </info> </alert> </embeddedXMLContent> </xmlContent> </contentObject> </EDXLDistribution

3.5. Next Steps in EDXL Development

The Disaster Management (DM) Program sponsored a Standards Working Group (SWG) meeting on June 21, 2005 to review and validate DM’s current standards-related efforts and to evaluate requirements for resource messaging standards. Participants included end user practitioners, industry, incident response agencies and associations, along with other Federal standards efforts. During the meeting, decisions were made about future collaboration and the DM standards development process.

One key lesson-learned from hurricanes Ivan and Katrina is the inability of the EM community in general to effectively manage resources during emergency response. The DM-SWG has worked with EM practitioners to compile requirements for an EDXL resource management protocol (EDXL-RM). The EM-TC is initiating work on the EDXL-RM standard. An initial draft of the EDXL-RM object model is provided in Figure 11.

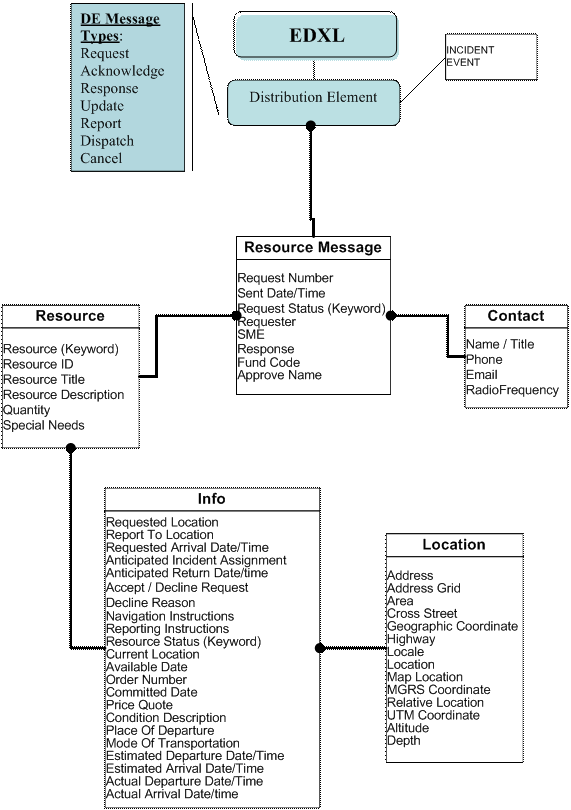

Figure 11. EDXL Resource Management

This initial draft of the EDXL-RM is the next step in development of the EDXL suite of EM interoperability standards.

Acknowledgements

The authors would like to express appreciation to the following individuals and organizations for contribution and support in this effort: OASIS; OASIS EM-TC; The DHS Disaster Management Program; EIC; NOAA; Christian Elliot, USGS; Tom Merkle, CapWIN; David Ellis, Sandia National Laboratory; Gary Ham, DMIS; and Art Botterell, Incident.com.

Bibliography

[CAP1.1]
Common Alerting Protocol, v. 1.1 Committee Specification, 11 August 2005.
[EDXL-DE1.0]
Emergency Data Exchange Language (EDXL) Distribution Element, v. 1.0 Committee Draft, 19 August 2005.

Biography

Patti Iles Aymond
Senior Scientist
IEM, Inc. [http://www.ieminc.com/]
8555 United Plaza Boulevard
Suite 100
Baton Rouge
Louisiana
70809
United States of America
patti.aymond@iem.com [mailto:patti.aymond@iem.com]

Dr. Patti Iles Aymond is a Senior Scientist for IEM, Inc. (IEM). She has guided the design, development, and use of large-scale simulation systems, such as IEM’s revolutionary integrated protective action simulation system, QEM-World™. The design basis of QEM-World™ is Dr. Aymond’s specialized general search tree that yields unparalleled storage and search performance. She also designed the simulation control object of the QEM-World™ traffic simulation model. Dr. Aymond served as Design Coordinator for Phase I of IEM’s D2-Puff™ — a chemical weapons dispersion model that IEM is extending with enhanced capability for the Soldier Biological and Chemical Command (SBCCOM). In addition, Dr. Aymond developed the plan for bringing D2-Puff™ into Department of Defense (DoD) High Level Architecture (HLA) compliance. Dr. Aymond was the Project Leader for a Defense Threat Reduction Agency (DTRA) project to develop an automated tool for updating global population information in an effort to reduce collateral effects of military actions. Dr. Aymond was the Senior Design Architect for an analysis support tool developed as part of IEM’s Chemical and Biological Warfare Defense Study, which was conducted for DTRA. She designed the architecture, prototype, functional design specifications, and database for IEM’s Domestic Anthrax Model. Dr. Aymond holds both a PhD and a BS in Computer Science from Louisiana State University. She is a member of the Organization for the Advancement of Structured Information Standards (OASIS) Emergency Management Technical Committee, the Institute of Electrical and Electronics Engineers (IEEE), and the Society for Industrial and Applied Mathematics (SIAM).

Elysa Jones
Engineering Program Manager
Warning Systems, Inc. [http://www.warningsystems.com/]
6767 Old Madison Pike
Suite 110
Huntsville
Alabama
35806
United States of America
ejones@warningsystems.com [mailto:ejones@warningsystems.com]

Ms. Elysa Jones is the Engineering Program Manager for Warning Systems, Inc. (WSI). She has more than 25 years experience in engineering program management, software development, and product design and development. She has been with WSI since 1998 and has been instrumental in the successful design and development of new products and installation of major radio warning systems. She also served on the board of trustees for the Partnership for Public Warning and is committed to the work of improving public warning in our country and throughout the world. She is the current Chair of the OASIS Emergency Management Technical Committee. Through those efforts, Ms. Jones works diligently to further standards development to support all aspect of Emergency Management. Through this work, she monitors the development of the National Incident Management System (NIMS), the National Response Plan (NRP), and other emergency management initiatives to ensure that WSI product development is aligned with changes in the field.
